Are you looking for a high-performance, lightweight, and durable fabric that combines flexibility with strength? Look no further than 3K Twill Carbon Fiber Fabric. Widely used in aerospace, automotive, sports equipment, and industrial applications, 3K Twill fabric offers exceptional mechanical properties, a sleek aesthetic, and unmatched versatility for a wide range of uses.
Whether you're designing cutting-edge products or looking for the perfect fabric for your manufacturing needs, 3K Twill Carbon Fiber Fabric delivers the performance you require.

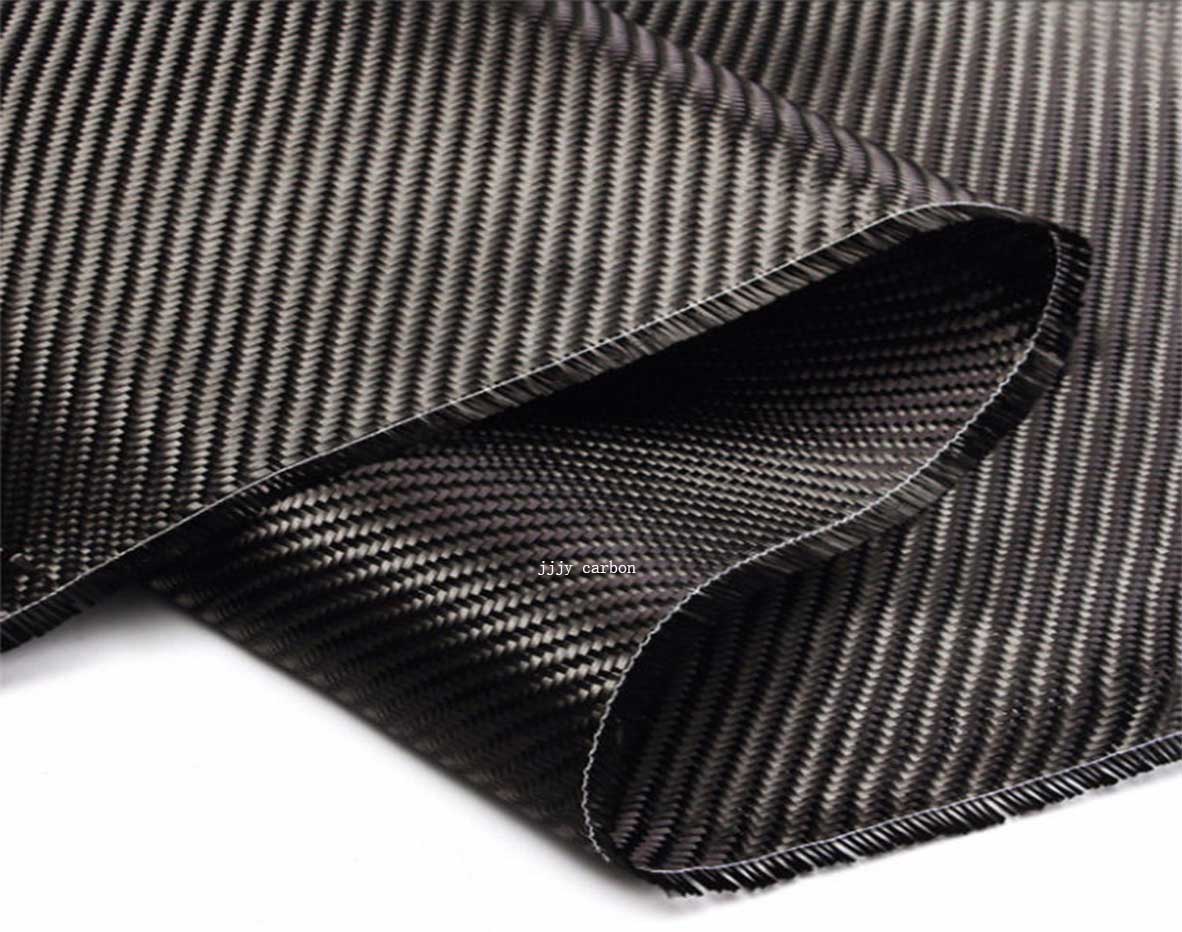

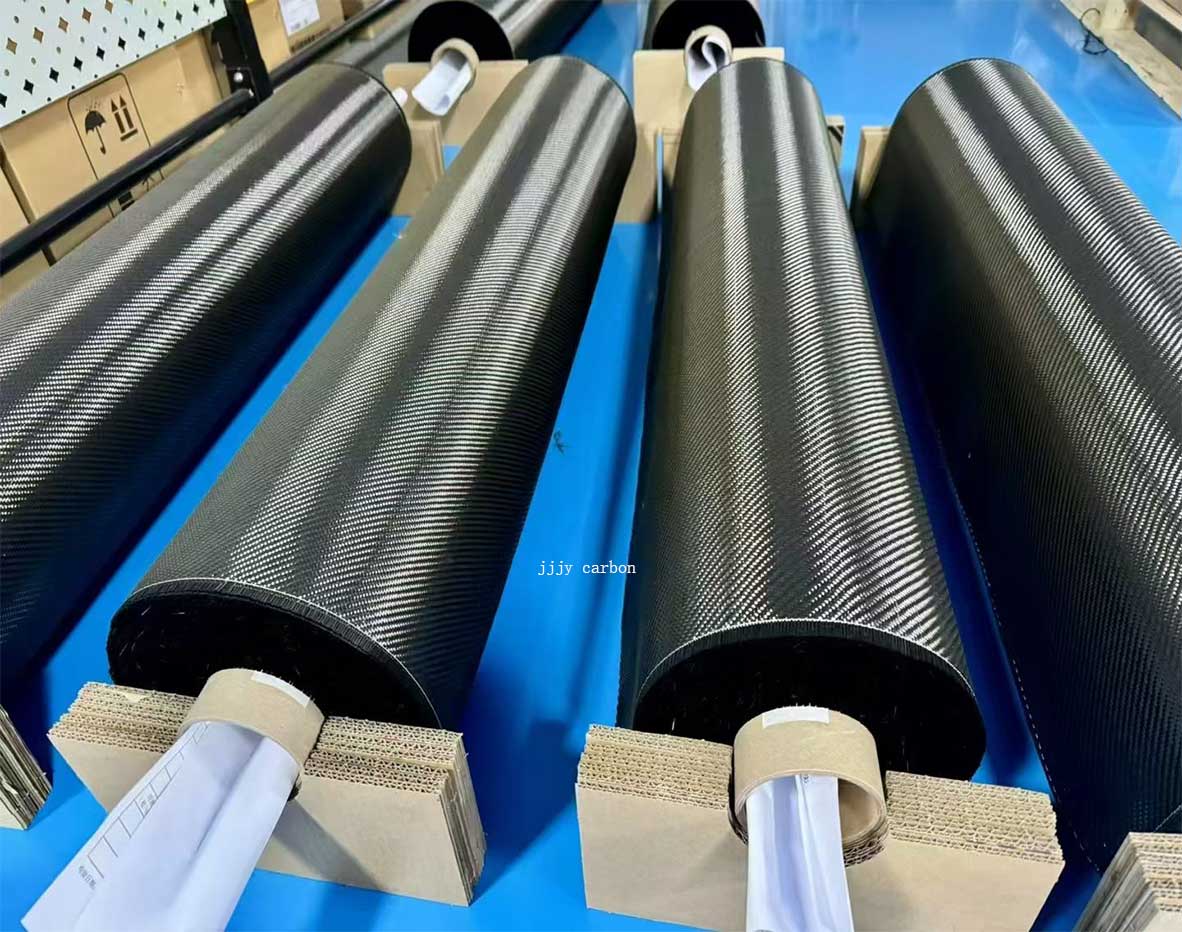

3K Twill Carbon Fiber Fabric is a composite material made from carbon fibers woven in a distinctive twill pattern, consisting of 3,000 filaments per strand (denoted by "3K"). The twill weave offers a unique combination of strength, flexibility, and an attractive, glossy finish, making it ideal for products that demand high-performance materials. This fabric comes in rolls, ready to be used for a wide variety of applications that require both strength and a visually appealing design.
The fabric is typically used in combination with resin systems to create lightweight yet durable composite structures, resulting in superior mechanical properties after curing.
Premium Material: Made of high-quality T300 3K carbon fiber tows, ensuring consistent strength and reliability.
2x2 Twill Weave: Classic twill pattern for enhanced drapability, easy layup, and an attractive diagonal finish.
Lightweight & High-Strength: Exceptional strength-to-weight ratio, lighter than metal but stronger than most traditional materials.
Stable Quality: Strict quality control during weaving and inspection, ensuring uniform thickness and weave density.
Versatile Processing: Compatible with epoxy, polyester, and vinyl ester resins; suitable for hand layup, vacuum infusion, and autoclave molding.
Customizable: Available in various weights, widths, and finishes to meet your specific project needs.
Specification | Details |
|---|---|
Fiber Type | 3K Carbon Fiber Tow (3000 Filaments/Tow) |
Weave Style | 2x2 Twill Weave |
Area Weight | 180gsm, 200gsm, 240gsm, 300gsm (Customizable) |
Width | 1000mm, 1250mm (Customizable) |
Thickness | 0.15mm - 0.3mm (Depends on Weight) |
Color | Natural Black (Matte/Glossy Finish Optional) |
Resin Compatibility | Epoxy, Polyester, Vinyl Ester |
Automotive Industry: Exterior parts (spoiler, body kits, hoods), interior trims, racing components, and lightweight chassis parts.
UAV & Drone: Drone frames, propellers, and structural components, ensuring lightweight and high durability for long flights.
Sports Equipment: Bicycle frames, tennis rackets, golf clubs, surfboards, and ski equipment, enhancing performance and reducing weight.
Industrial & Aerospace: Industrial machinery parts, aerospace components, and marine equipment (boat hulls, decks) for corrosion resistance and strength.
DIY & Custom Projects: Custom carbon fiber products, prototypes, and hobbyist projects, thanks to its easy processing and attractive finish.
