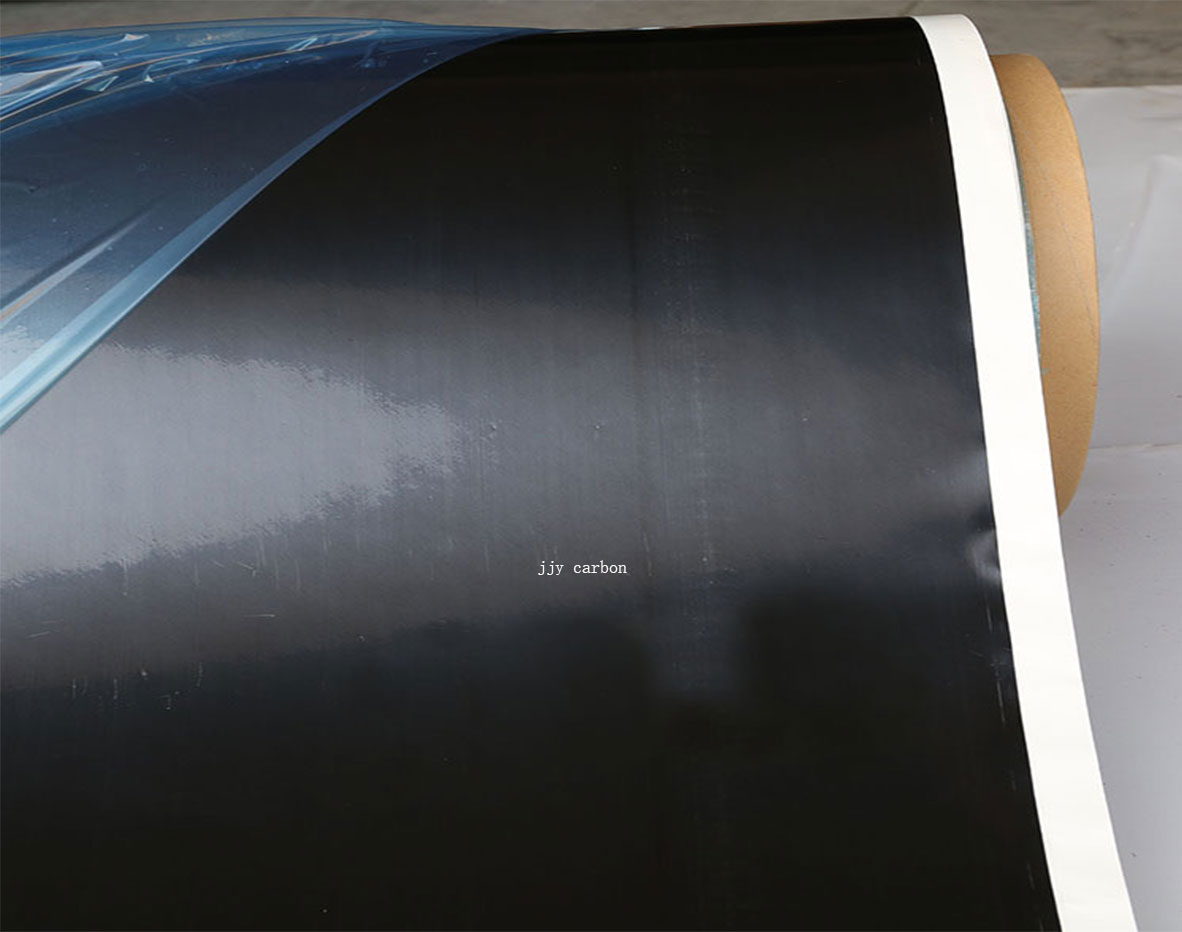

T300 UD Carbon Fiber Prepreg is a high-performance composite material made from T300 Carbon Fiber aligned in a single (unidirectional) orientation and pre-impregnated with a thermosetting epoxy resin system.
This structure enables maximum strength and stiffness along the fiber direction, making it an ideal material for applications requiring directional load-bearing performance and lightweight design.
Maximum Fiber Utilization Efficiency
Superior Load Path Optimization
Reduced Material Waste in Structural Design
Ideal for High-Performance Engineering Applications
Property | Typical Value |
Fiber Type | T300 Unidirectional Carbon Fiber |
Fiber Orientation | 0° (UD – Unidirectional) |
Resin System | Epoxy (Thermosetting) |
Resin Content | 30%–40% |
Areal Weight | 100–300 gsm (customizable) |
Tensile Strength (0°) | ~1500–2500 MPa (laminate) |
Tensile Modulus (0°) | ~120–140 GPa |
Density | ~1.5–1.6 g/cm³ |
Form | رول / Sheet |
Note: Specifications can be customized based on project requirements.
High Strength in Fiber Direction (0°) – उत्कृष्ट load-bearing capability
Lightweight Performance – Excellent strength-to-weight ratio
Consistent Resin Distribution – Improved quality and repeatability
Tailored Mechanical Properties – Optimized via multi-angle layup
Efficient Processing – Ready-to-use prepreg material
Structural components
UAV frames
Lightweight load-bearing panels
Chassis reinforcement
Structural inserts
Lightweight performance parts
Pressure vessels
Robotic arms
High-strength composite panels
Bicycle frames
Fishing rods
Performance gear
