Twill Matte Carbon Fiber Sheet Best seller

Our matte carbon fiber sheets are made of 100% real carbon fiber without any filling materials, The sheets have our durable matte mirror finish and twill weave on both sides. The finish is perfect for high-end decorative applications and cutting carbon fiber products. We do not make fake carbon fiber sheet.

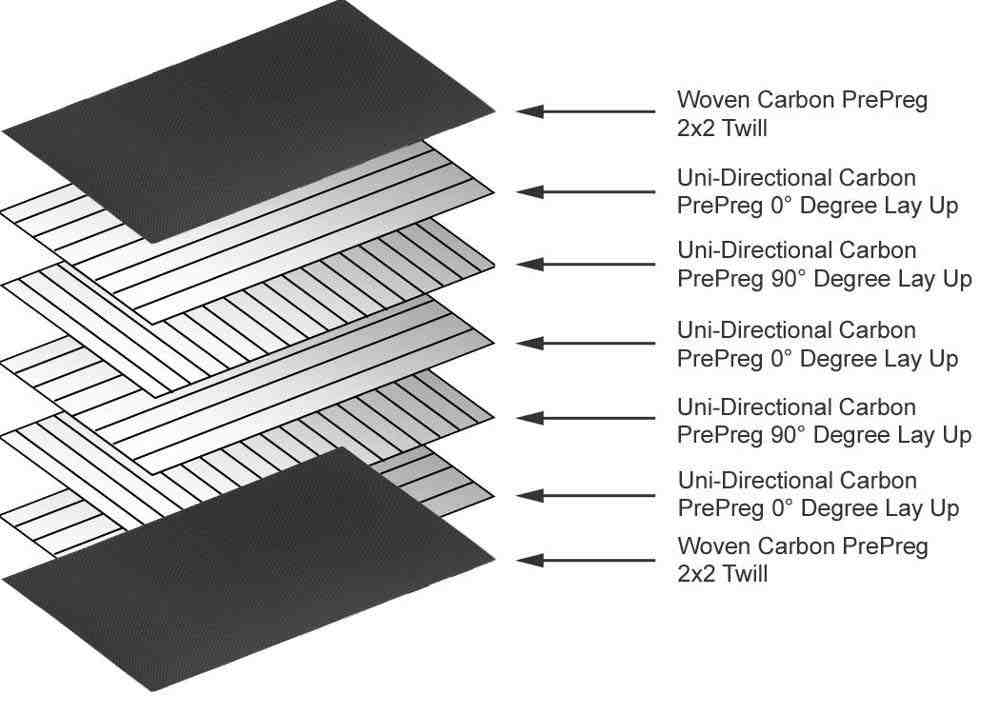

Their inner are constructed using layers of unidirectional carbon fiber prepreg layed up in a 0/90 degree orientation with a single layer of 2x2 3K twill weave carbon fiber cloth on two sides surfaces. Our flat carbon fiber plates have the most beautiful surface, best quality and competitive price. Buy carbon fiber sheet from Jinjiuyi is your best choice.


Share:
Product Description

Raw Materials

Carbon fiber (carbon fibre), or CF, is a material which consists of long strings of molecules held together by carbon atoms. Carbon atoms are bound together in microcrystals, which are basically parallel to the long axis of the fibers. The crystal alignment makes optical fibers extremely strong in size. Thousands of carbon fibers are twisted together to form yarns that can be used alone or woven into fabrics. Jinjiuyi carbon fiber sheets are made from this multiple laminations of carbon fiber fabrics and epoxy resins.


Matte Carbon Fiber Sheet Twill Weave |  Jinjiuyi


Plate thickness

As a professional supplier of carbon fiber sheets, Jinjiuyi offered thickness: 0.5mm / 1mm / 2mm / 3mm / 4mm / 5mm / 6mm  /7mm / 8mm / 10mm / 12mm / 15mm … up to 25mm (1 inch). Also custom carbon fiber panel thickness such as 1/8" and 1/4" carbon fiber sheets



Plate size

Our standard size is : 400x500mm, 500x500mm, 600x500mm, also we can custom size with your required specifications, up to 1000 x1000mm.



Our Service

All of our carbon fibre sheets are manufactured by our own workshop, and we can ship to worldwide. We will to be your best carbon fiber sheet supplier.



We also custom cut carbon fiber sheet fit to your specs, including size and thickness and color, and offer CNC cutting carbon fiber products according to your design. In addition, we have T300 and T700 carbon fiber material for choosing.



If you are carbon fiber sheet hobby and want to know our matte carbon fiber sheets price, please contact us with email: info@jinjiuyi.net.


Product Features

1. Anti-UV.

2. Light weight.

3. High strength, good flexibility.

4. Flat carbon fiber sheet

5. Wear-resistant, impact-resistant.

6. Anti-aging and corrosion resistance.

7. Ideal material for contoured or angled cuts.

8. Apply to FPV racing drone frame, medical instruments, cars material, sports goods.


Application

Our twill matte carbon fiber sheets can be used in many applications. Here are some examples of our carbon sheets usage.


1. Carbon fiber drone frame


Drone frames are mostly built from Carbon Fiber sheets and tubes. Carbon Fiber suits well for this application due to its light weight and strength. Because weight is a critically important requirement for drones they are almost exclusively made from expensive, but light carbon fiber materials. Usually use 2mm,3mm,4mm,5mm and 6mm carbon fiber sheets to cut.

High Gloss Plain Carbon Fiber Sheets 400 x 500-Jinjiuyi



2. CNC Cutting to carbon fiber products


Due to Carbon Fiber's unique appearance, it is used as items of decorations and is highly valued by designers.such as Jewelry and rings, carbon fiber business card, logo, carbon fiber keyboard, and some crafts.


High Gloss Plain Carbon Fiber Sheets 400 x 500-Jinjiuyi


3. Racing car


Different details for weight saving purposes. It is possible to manufacture details for racing cars, boats and other motorized and non-motorized vehicles.



High Gloss Plain Carbon Fiber Sheets 400 x 500-Jinjiuyi



4. Machine parts


Carbon Fiber composites are becoming a common material for making production equipment. Carbon can decrease the mass of fast-moving parts, that in turn improve the efficiency of the machine due to shorter acceleration and braking time. Smaller moving mass also means smaller energy consumption. This leads to a machine with less power demand and can lead to a machine purchase at a lower price point. Another advantage of Carbon Fiber is low thermal expansion and vibration dampening. These are extremely important properties for measuring tools and devices that work in a variable temperature environment. Vibration reduction is a property common required for 3D scanning technologies.


5. Industrial robots


Tools for industrial robots, Carbon Fiber sheets are a far superior material to aluminum and steel for making lightweight tools and robot parts. Carbon Fiber enables robots to make fast movements, reduce more weight while using less energy and use smaller, less powerful and less expensive robots in return. Carbon Fiber composites greatly improve the productivity and lowers costs involved.


If you want to get our twill matte carbon fiber sheets price, or need to cut carbon fiber products, please contact us by email: info@jinjiuyi.net.
