Roll Wrapped Carbon Fiber Tubes-Jinjiuyi

Our roll wrapped prepreg carbon fiber tubes are manufactured by wrapping unidirectional carbon fiber prepreg fabrics around a mandrel, wrapped by our machines, then the tubes after high temperature curing and repeated grinding. Finally manufactured a highly specific and customizable carbon fiber tube with lightweight and high strength properties. Their surface is 3K carbon fiber weave fabric, the tubes have beautiful and amazing appearance. These roll-wrap carbon fiber tubes offer higher strength to weight ratio than is available in pultruded tubes.


Share:
Product Description


Raw Material

Our wrapped carbon fiber tubes are manufactured by wrapping unidirectional carbon fiber prepreg fabrics around a mandrel, These tubes are made of 100% real carbon fiber materials which are imported from Japan Toray company, they are the most common grade of carbon fiber used for our carbon fiber tubing. This standard modulus offers excellent strength and stiffness.

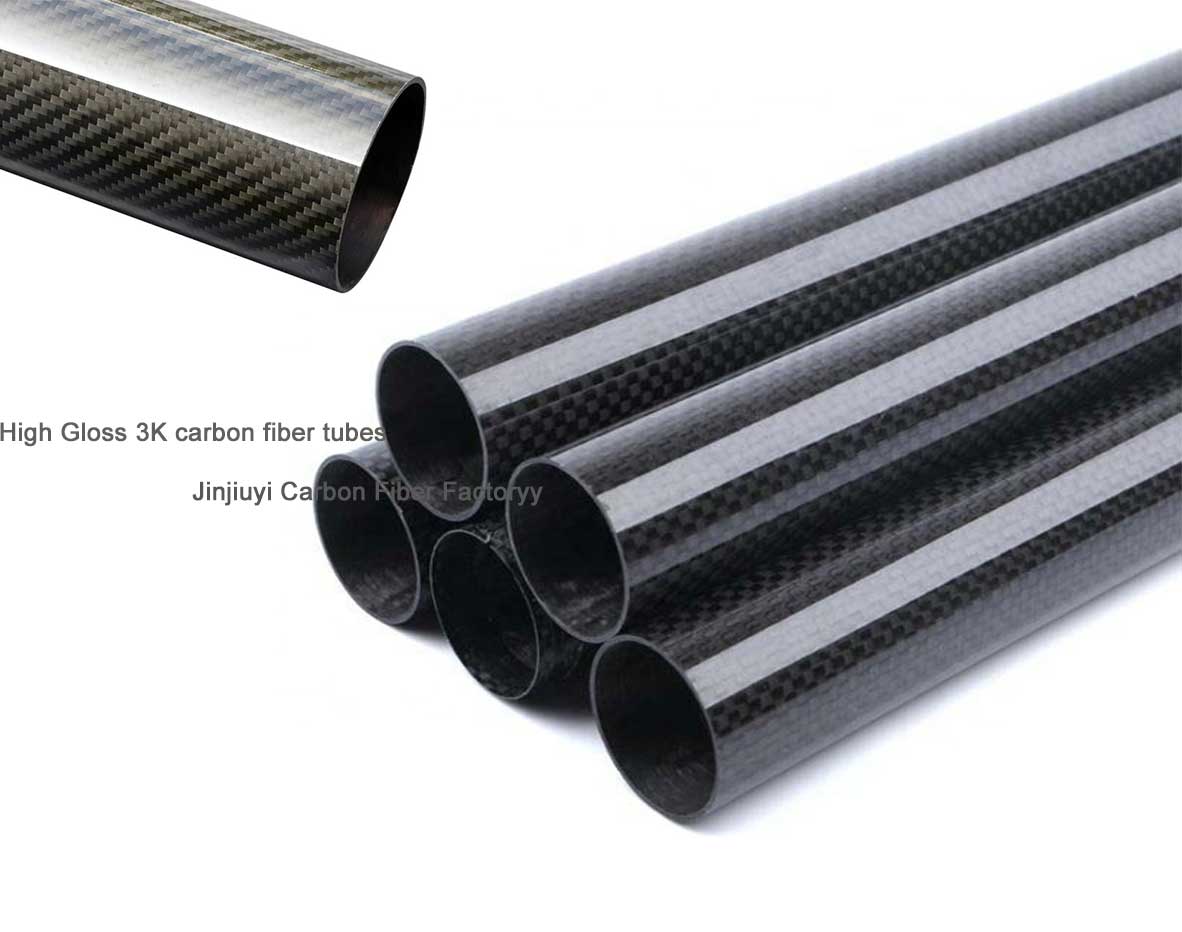

All our round carbon fiber tubes have been engineered to be much stronger under torsional and side loading than pultruded carbon fiber tubes. The surface is 3K carbon fiber weave fabric, available be twill gloss and twill matte, plain gloss and plain matte. These tubes show the texture of the carbon fiber with a beautiful and shiny appearance.


Tubes size and thickness

Standard inner and outer diameter: 4*6, 6*8, 8*10*10, 10*12, 12*14, 14*16, 16*18,… 40*42mm.

Thickness: 1mm, 1.5mm, 2mm.

Standard length: 1000mm.

Also if you want long or short tubes, small or large diameter tubes, please tell us your spec, we can custom carbon fiber round tubes for you.



Tubes color

Color of carbon fiber tubes is always black due to the color of the carbon fibre. Also we have colored fiber glass and unidirectional tubes for choosing.

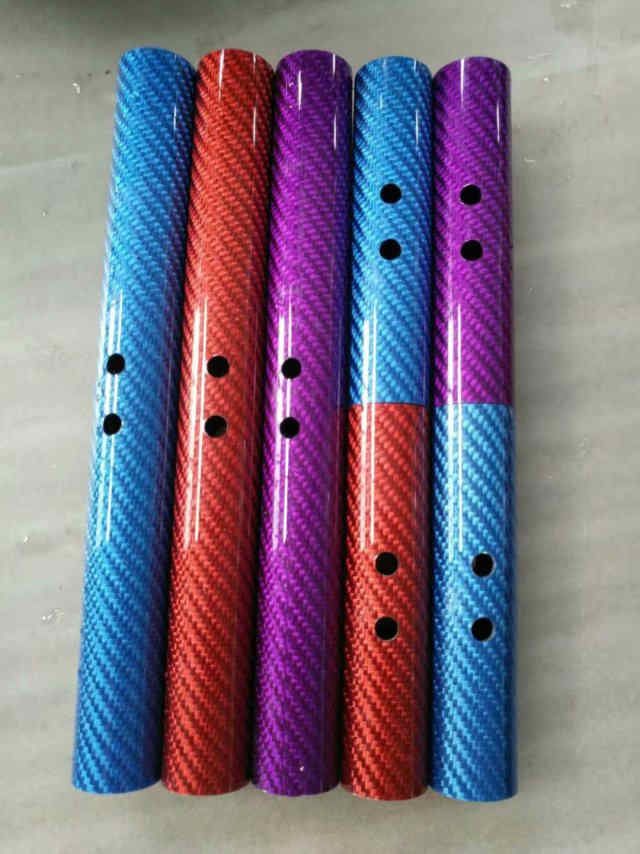

Colored Carbon Fiber Tubes


Our service

Jinjiuyi is one of the high-quality carbon fibre tubes manufacturers in China, we can make carbon tubes to your spec, also we offer CNC machining and drilling holes service.


Colored Carbon Fiber Tube


Product Features

1. Light weight, high strength, high-temperature resistance, Modulus: 100GPa.

2. Very low CTE (coefficient of thermal expansion), Elongation at break (%): ≧1.7, Pull force: 300KG/MM2.

3. Heat resistance and corrosion resistance, High temperature resistance: 200 ° C.

4. Three times stiffer than aluminum (or equivalent to steel stiffness), Strength: 1000MPa.

Note that the carbon fiber composite tubes can not be used as insulators because carbon conducts.



Application


Our roll wrapped prepreg carbon fiber tubes are ideal for building lightweight frames and support structures, carbon fiber tubes for RC planes, quadcopter, agricultural drone and robot arms, machine parts, telescopic poles, camera tripods, tool handles, flagpole, kite tubes and many more applications.

If you have any project working with carbon fiber tubes, please tell us, we have the right products suit for your applications.


Roll Wrapped Prepreg Carbon Fiber Tubes-Jinjiuyi       Roll Wrapped Prepreg Carbon Fiber Tubes-Jinjiuyi



If you buy carbon fiber tubes online, How to cut ?

Cutting carbon fiber tube is a difficult work if you do not have the right equipment. Carbon fiber dust is an irritant and can cause itching if gets on your skin or difficulty breathing if you inhale it. Proper safety equipment will help prevent this. Now we have 3 suggestion methods for you:

First, buy carbon fiber tubes from Jinjiuyi

We can cut to your size and machining and drilling holes for you if buy carbon fiber tubes from us, we are professional and easy.



For your safety, preparation is important as following:

Wearing your long sleeves or an apron and mechanic gloves is a necessary protective measure.

Use a tape measure and marking tools outlining where to cut.



Second, Angle Grinder

A standard metal cutting abrasive wheel is the tool of choice for this type of cutting. It can make easy work of cutting straight lines in carbon fiber as well.



Third, Hand Saws

Using a hacksaw cut the carbon fiber tube, find a higher TPI (TEETH PER INCH) will give you a better and faster cut.

Any way, Safety First.



If you want to buy carbon fiber tubes, please include ID, OD, length, dimensional tolerances, quantity, structural requirements, surface finish, surface pattern, material (if you know), temperature requirements, processing technology, etc. According to these points, we can easily and quickly quote you the price, please info us with email: info@jinjiuyi.net, thanks.
