Jinjiuyi carbon fiber team supply large size 13 Inch Carbon Fiber Endurance Heavy Load Drone Frame, the long range FPV drone frame can carry 5-8 KG flying more than 20 mins.

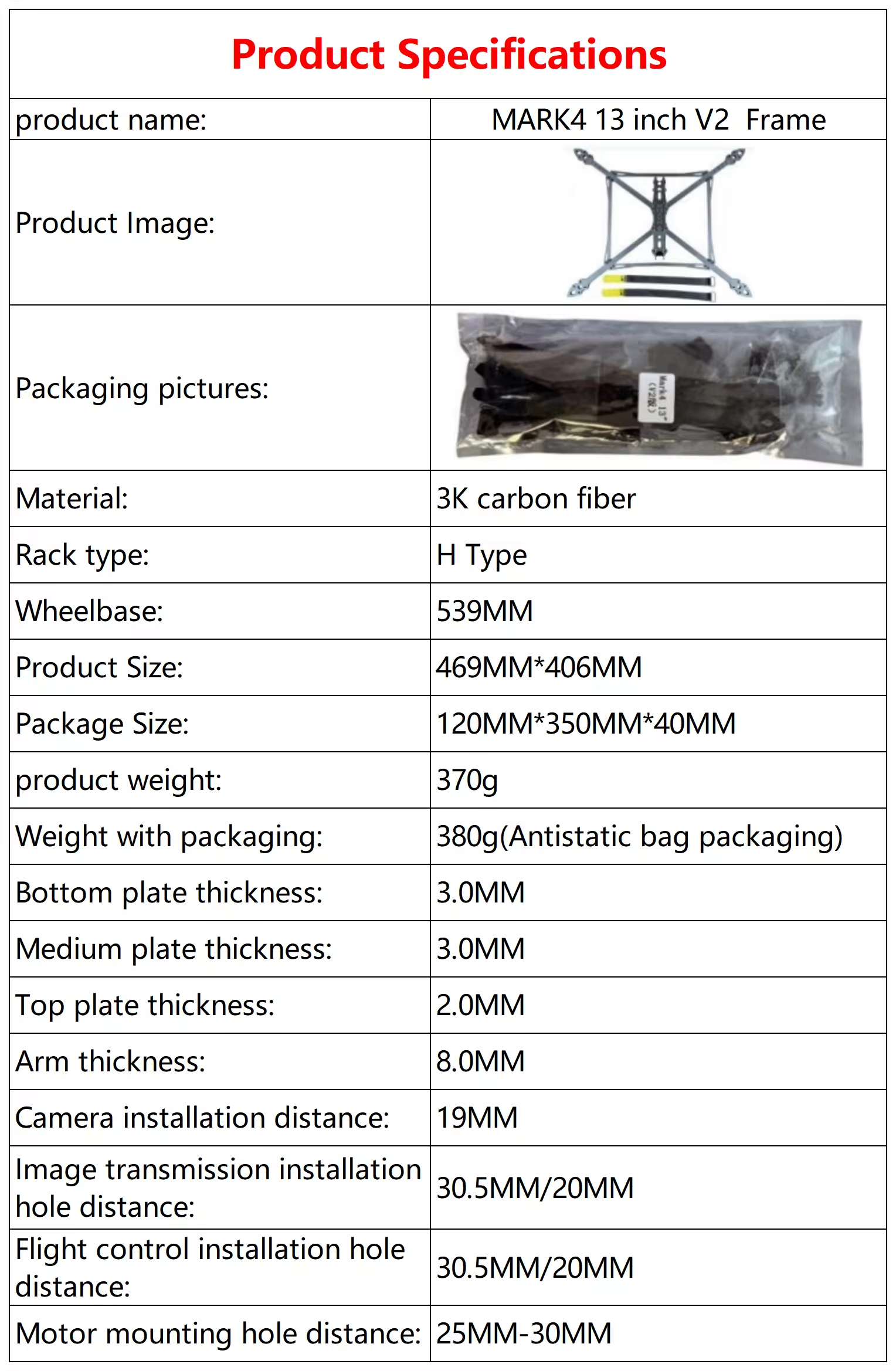

MARK4 13-V2 Frame
Rack type: positive H type
Wheelbase:539mm
Propeller: 13 inches

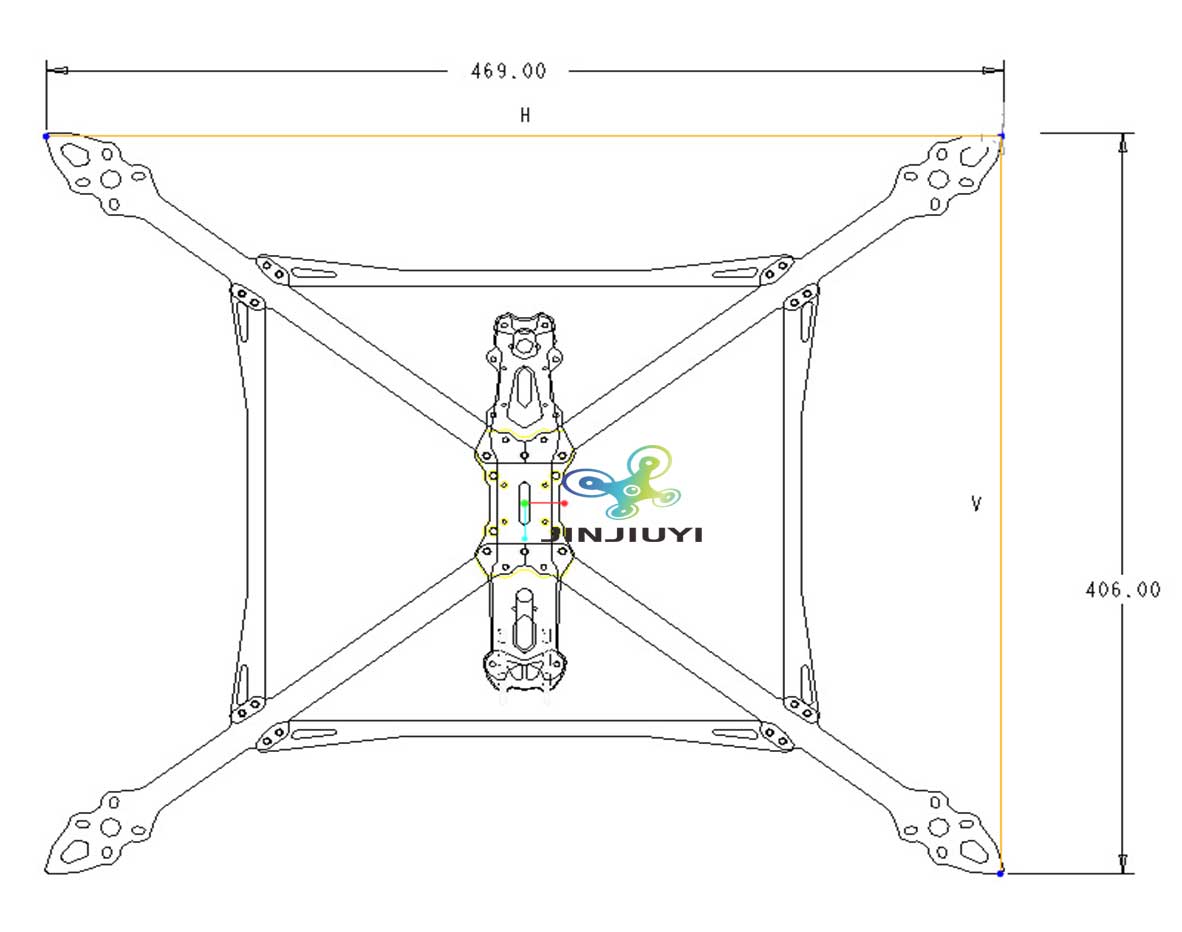

Size:469*406*35mm
Weight:370G (product weight)
Weight: 380G (packaging +product weight)
Bottom plate thickness:3mm
Thickness of middle plate: 3mm
Roof thickness:2mm
Arm thickness:8mm
Camera installation spacing:19mm
Figure transmission installation hole spacing: Compatible with 30.5MM/20MM
Flight control installation hole spacing: Compatible with 30.5MM/20MM
Recommended Configuration
Surface texture: twill / plain matte finish
Motor installation hole spacing:25MM-30MM
Recommended configuration: (not included)
Motor: 4215/4218/4312/5215
Electric tuning: 80A-100A 6S-8S
Propeller: 13 inches,
Camera: 19 * 19mm
Flight control: F4/F7/F405/F722VTX: 5.8 G/1.2 G/4.9G-1.2 W-5W
Battery: 6s-8s-12000MAH-22000MAH
Package included:

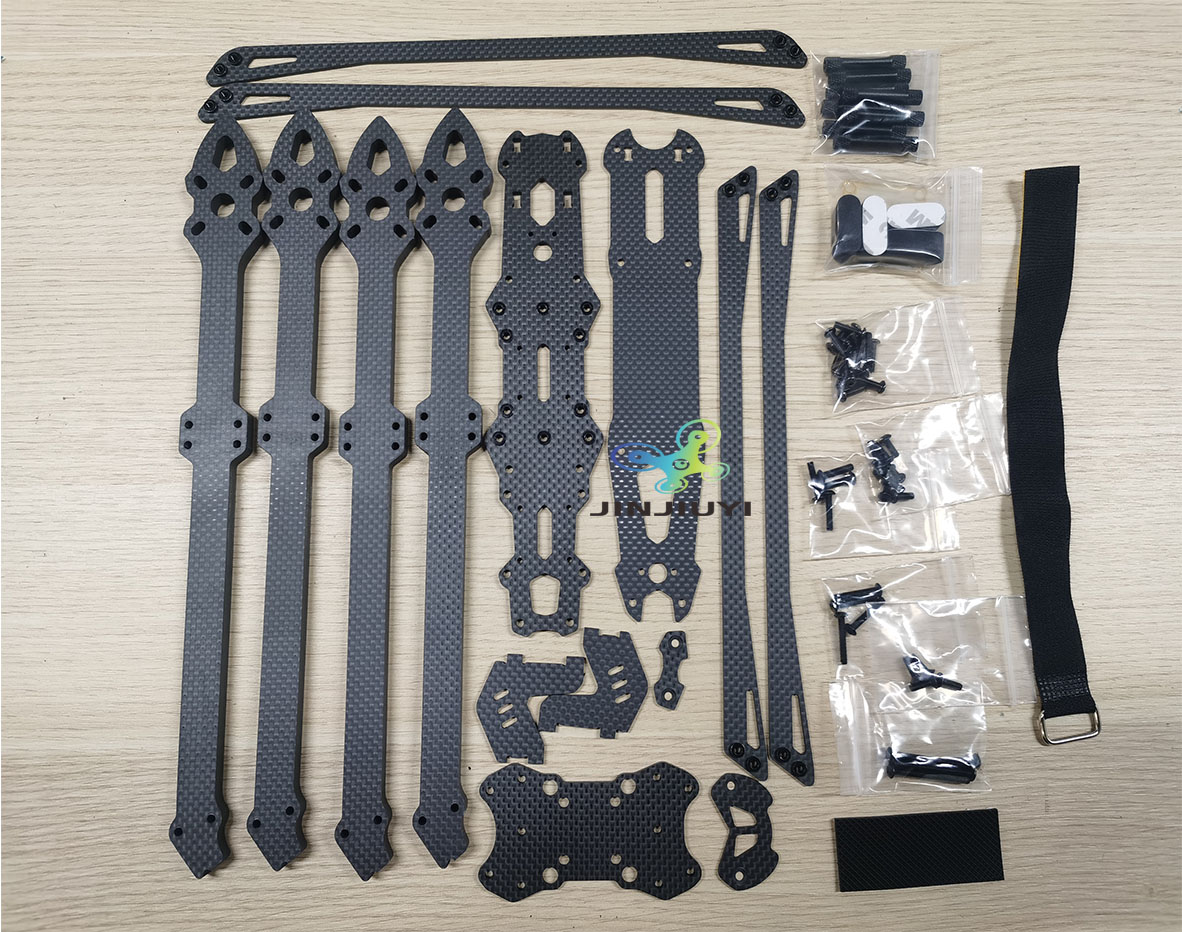

1*Mark4 V2 13 Inch FPV Drone Frame 539mm Carbon Fiber
