Jinjiuyi customizable 15-inch racing FPV Drone frames for professional payload 8KG and 10km flight distance drones. Heavy Payload 8KG FPV Drone 15 Inch VTX 10W Long Distance Anti-interference VTX 3.3G - 6G VRX 100-750Mhz Drone FPV Direct Factory.
Model: X15 15 inch - quick release carbon fiber frame
Wheelbase: 647 millimeters
Weight: 500 grams
Top plate thickness: 2mm
Bottom plate thickness: 4 millimeters
Arm thickness: 10mm
Camera installation hole spacing: 19mm
Image transmission hole spacing of 20 * 20mm, 25 * 25mm&30.5 * 30.5mm
Flight controller installation spacing: 30.5 * 30.5 millimeters
Internal space height: 25 millimeters
Motor installation hole spacing: 25 * 25mm&30 * 30mm

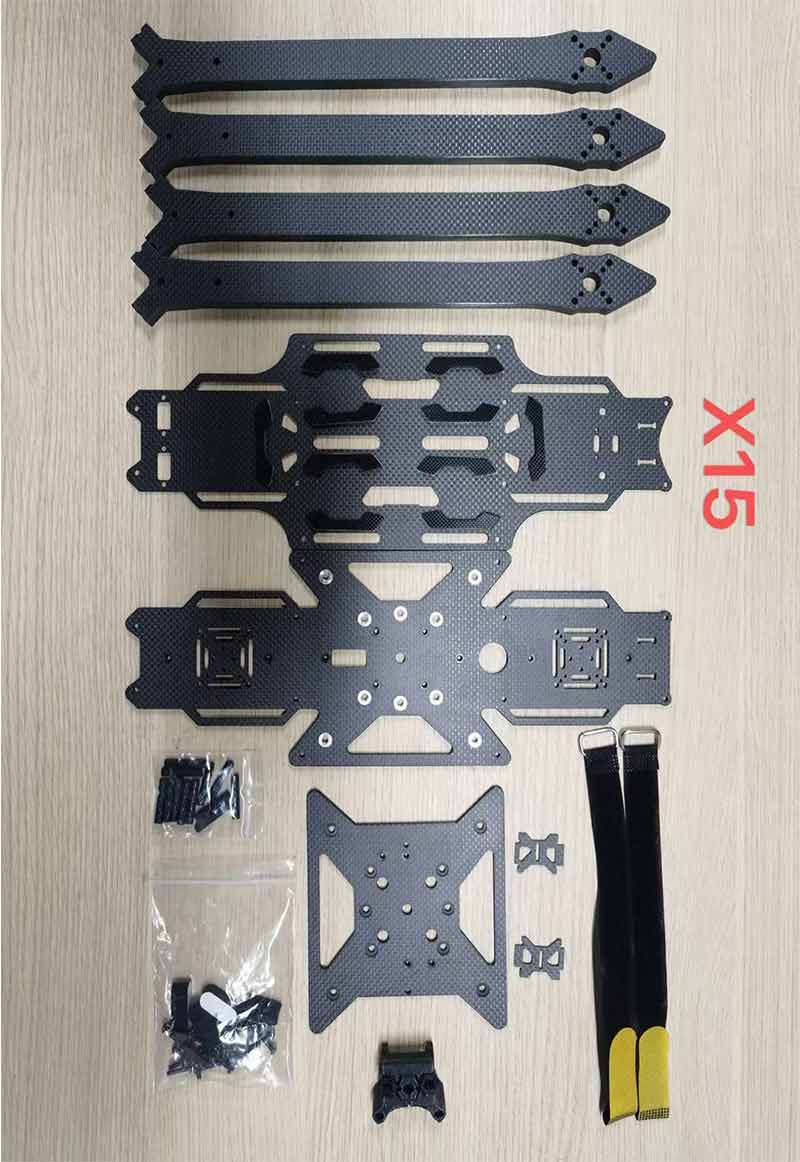

1. Frame-X15 15 Inch Carbon Fiber Frame
2. Stack-F405 Blheli-S 80A -8S
3. 5.8G Reaper Extrme 2.5W 40CH VTX /1.3G 1.6W VTX
4. 1/3 CMOS 1800TVL Camera
5. 4214 380KV MOTOR
6. GemFan 15 inches (2PAIRS)
7. Happymodel 915MHz X ELRS
8.VTX Antenna 5.8G/1.3G RHCP 150MM
9. Battery Strap 20*490mm*2

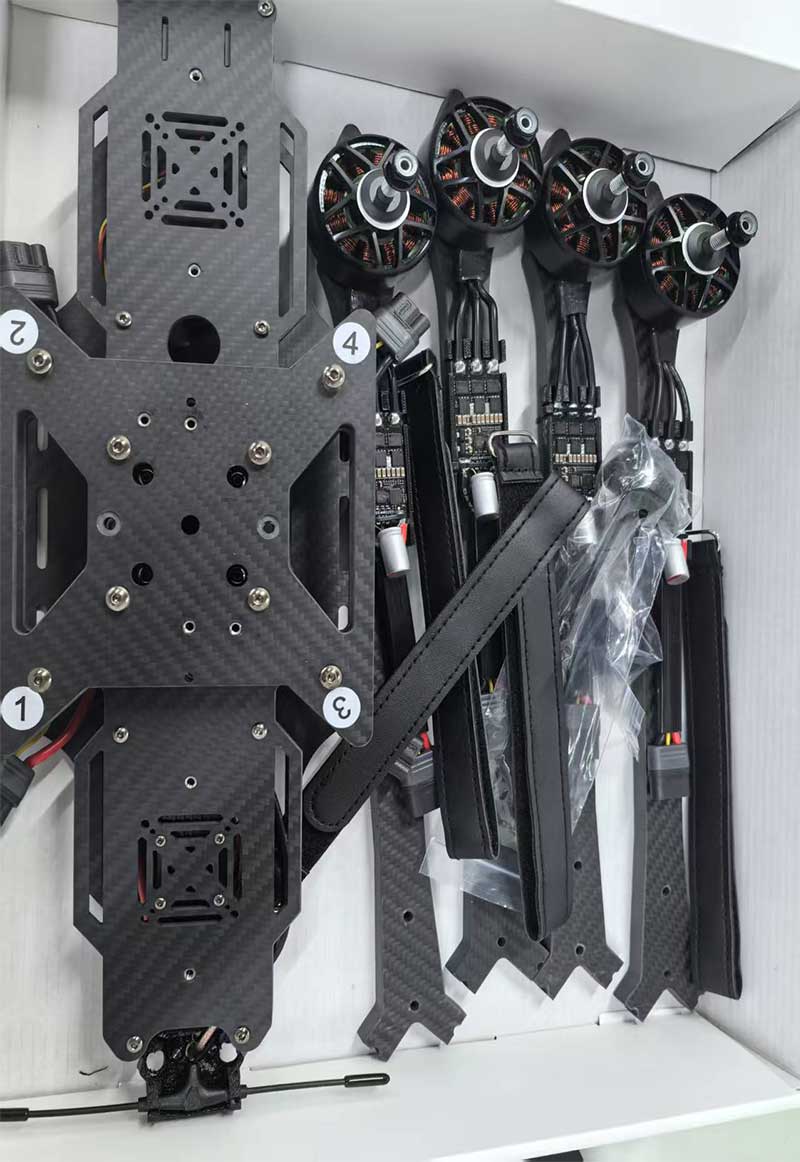

Demountable Arm with Motors, which is for safety shipment and Small Packing Volume.
The amrs with motor for DroView FPV Drones are demountable. It only need to install 8PCS Scews when install the FPV Drones. In that case, we can ship the fpv drones by parts for safety shipment. At the meanwhile, the packing volume is smaller when ship by parts. In that case, we have help our client save much shipping cost.
