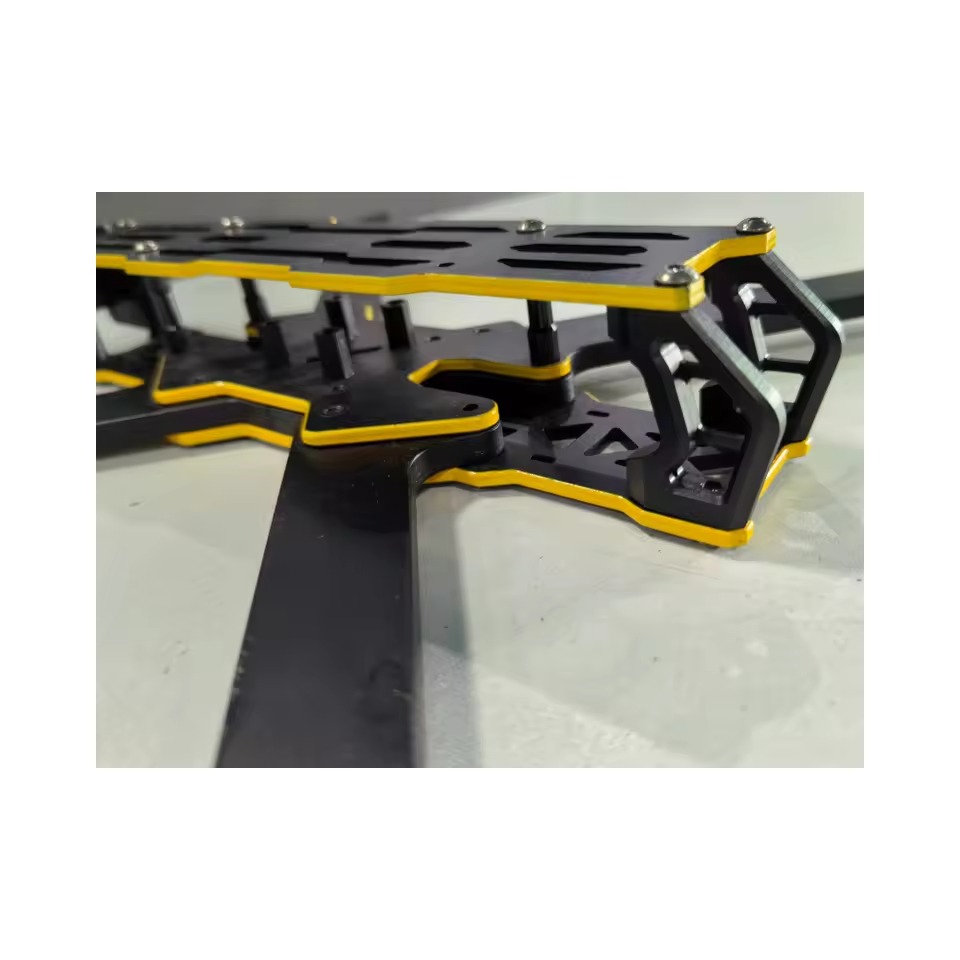

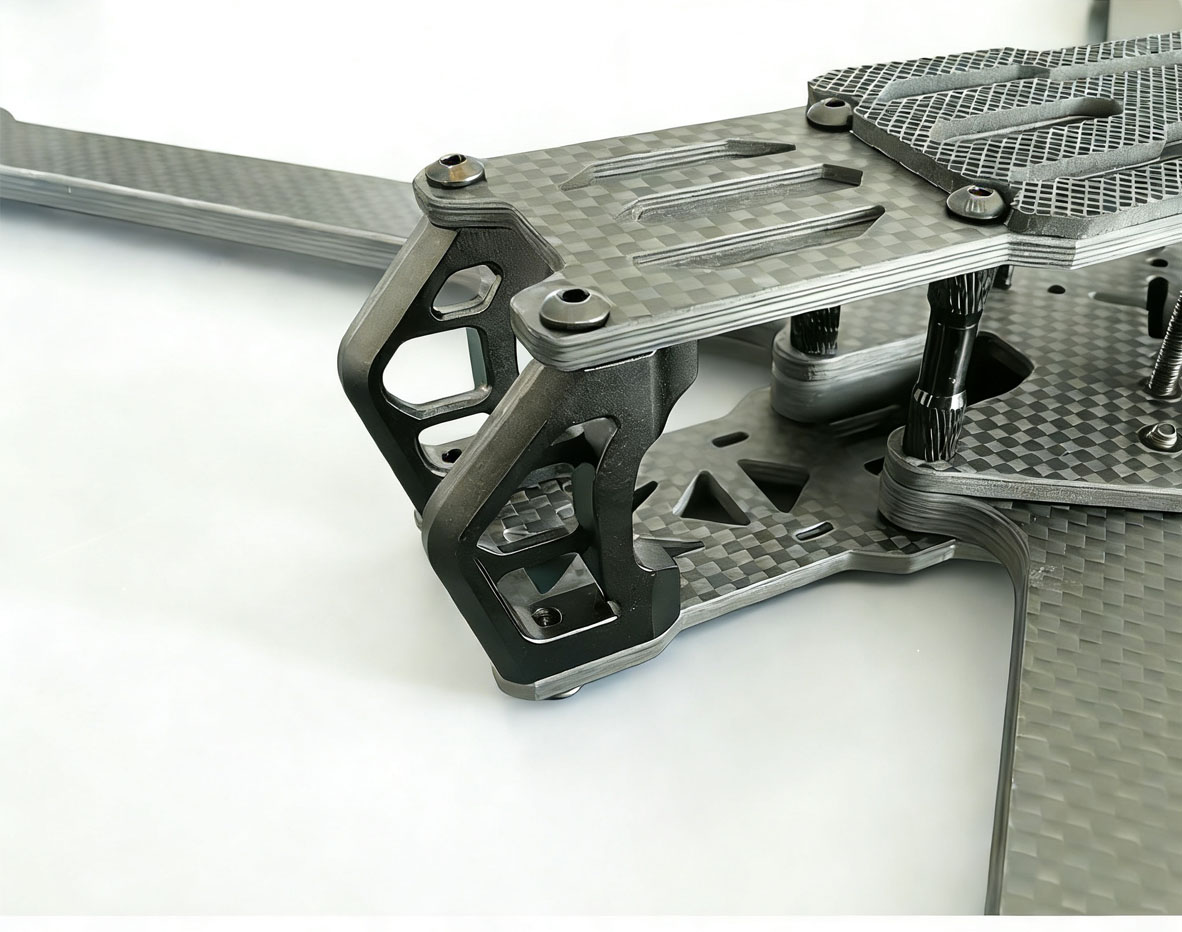

FX10 10 inch FPV drone frame is mainly used to carry multiple drones without taking up space, making it easy to carry and fast disassembly, It is widely used for outdoor game or military purposes.
Here we can provide a large quantity of this frames and offer customized services.

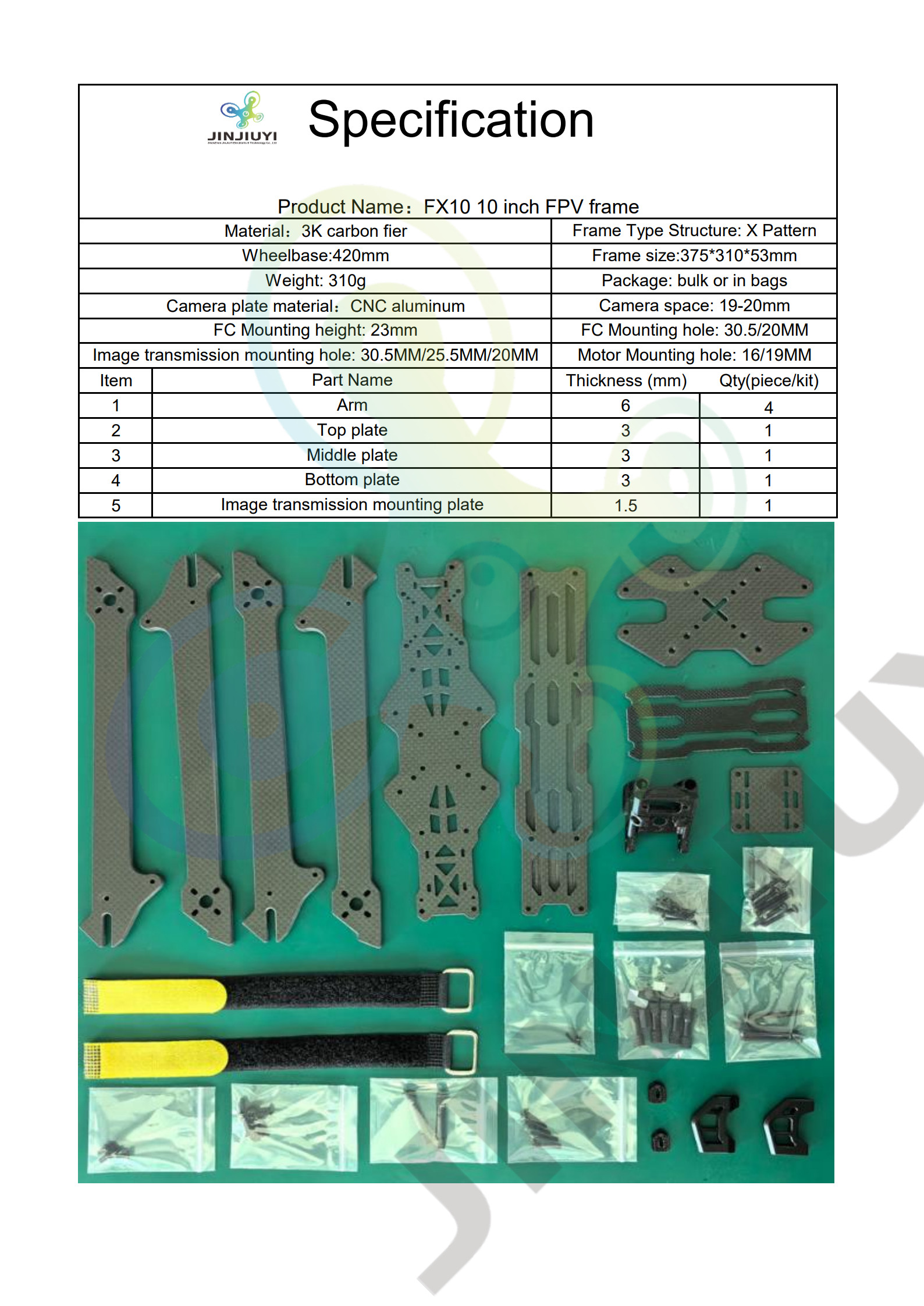

Product Specifications:
1.Product Name:FX10
2.The Rack Structure: X Pattern
3.Rack Wheelbase:420mm
4.Size of Rack:375*310*53mm
5.Weight(Excluding the Printing Part):310g
7.Inner Space Height:23mm
8.Arm Thickness:6mm
9.Thickness of Middle Plate:3mm
10.Bottom Plate Thickness:3mm
11.Top Plate Thickness:3mm
12.Motor Mounting Hole Distance16*16mm/19*19mm
13.Flight Control Mounting Hole:30.5*30.5 / 20*20mm
14.Image Transmission Installation Hole Distance:20*20(2mm)/25.5*25.5(2mm)/30.5*30.5(3mm)
15.Camera Side Plate Spacing:19-20mm
1.Compatible with DJI DJI03Sky End(HD)/ VistaSky End(HD)
2.AdoptCNC,The material is lightweight with high strength,Sturdy and durable.
3.correctXStructural Design,Flight is flexible and stable.
4.Upgrade the robotic arm to7mmThickness,Higher strength, more stable flight,More durable.
5.Compatible with professional motors,High efficiency, large load capacity,Loadable1.5-2.5KG.
6.Can be equipped withGoPro5/6/7/8/9/10/11,DJI Action,SonySONY ZV E10Camera
