Jinjiuyi carbon fiber team offers CNC cutting service for mark4 v2 10inch FPV drone frames for you, also we can supply full Mark 4 series FPV frame Kits.

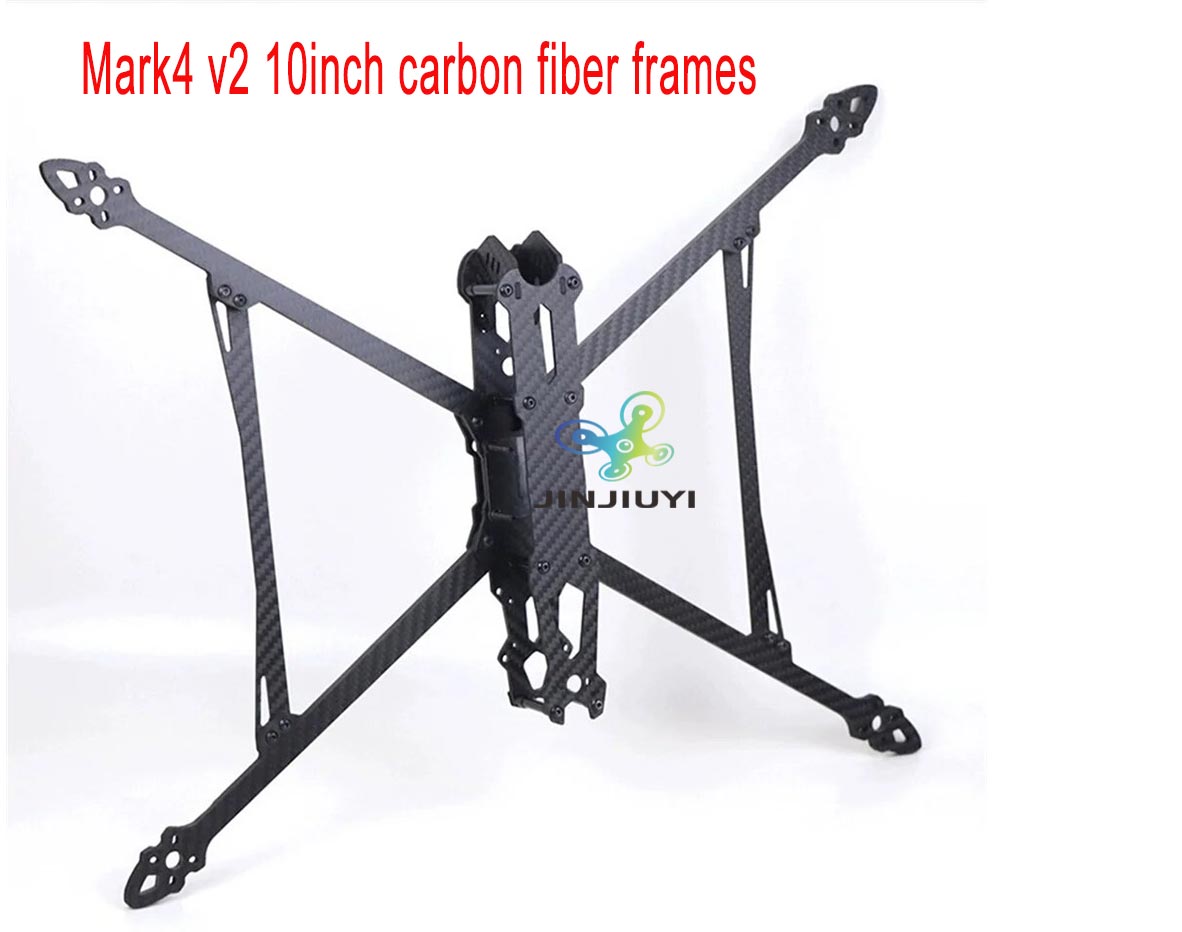

The Mark4 V2 4 10inch 427mm is a premium carbon fiber frame specifically crafted for drones. Its robust build and intelligent design offer a strong foundation for your copter, enhancing its stability and dependability in various flight scenarios.
Main characteristics
Bottom plate thickness: 3.0 mm
Camera side panel thickness: 2.5 mm
Connecting plate: 2.0 mm
Distance between camera mounting holes: 19 mm
Distance between the holes to set the image transmission: 20x20 mm and 30.5x30.5 mm
Frame structure: X-type
Height of the interior space: 35 mm
Lever thickness: 7.5 mm
Middle plate thickness: 3.0 mm
Position of the motor mounting hole: 16x16 mm and 19x19 mm
Size: 268.18 mm x 332.07 mm
Spacing of holes for installation of flight controls: 20x20 mm and 30.5x30.5 mm
Top plate thickness: 2.0 mm
Wheelbase: 427 mm
The primary purpose of the Mark4 V2 10 inch frame is to deliver a firm and stable base for all drone components. It minimizes vibrations and boosts overall flight performance by securely housing the drone's electronics and mechanics.
Material: 3K Carbon Fiber
Frame Type: H-type
Wheelbase: 427mm
Weight: Approximately 240g
Bottom/Mid Plate Thickness: 3mm
Top/Connector Plate Thickness: 2mm
Camera Arm Thickness: 6mm
Camera Mount Hole Spacing: 19mm
Video Transmitter Mount Hole Spacing: Compatible with 30.5mm and 20mm
Flight Controller Mount Hole Spacing: Compatible with 30.5mm and 20mm
Motor Mount Hole Spacing: Compatible with 16mm and 19mm

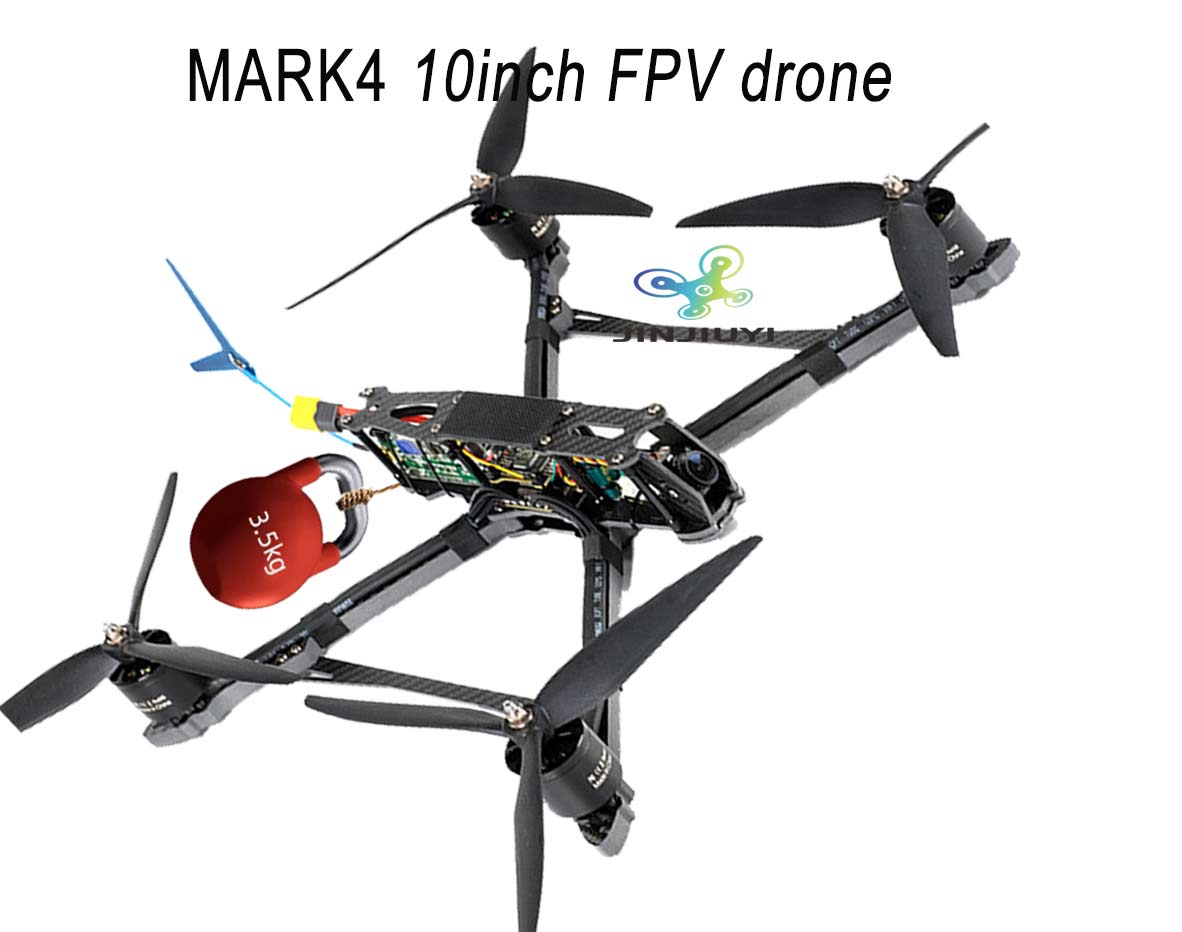

This 10 inch frame is tailored for racing drones and FPV (First Person View) copters that demand high durability and accuracy during operation. Its adaptable design accommodates a wide range of components, The maximum load capacity is 3.5KG, which can be applied to more industries. Ensure your copter achieves optimal stability and reliability with top-notch materials and construction. Perfect for professional flights and competitions, this frame promises durability and outstanding performance in all conditions. Order now and experience the difference!
Q1: Can I fly FPV drones without prior experience?
A: We recommended to start with a simulator to gain flying skills before flying a real FPV drone. Flying FPV drones requires some level of skill.
Q2: Are FPV drones easy to assembled?
A: For beginners, Ready-to-fly drones is the best choose, come pre-assembled and require minimal setup. Racing drones may require some technical knowledge and customization. It is essential to follow assembly instructions for safe and optimal performance.
FPV drones provide an unmatched flying experience that taps into your inner pilot. Whether you’re a beginner or an experienced flyer, there is a perfect drone option available for you. With a wide range of choices, from ready-to-fly drones to racing drones and long-range drones, the possibilities are endless. Consider your goals, budget, and desired features to make an informed decision. Prepare yourself to soar through the skies, capture breathtaking aerial footage, and embrace the thrill of FPV drone flying like never before.
If you want to create your own FPV racing drone, choosing the right frame suit your level and style is crucial, Order frames from us now to get started.
