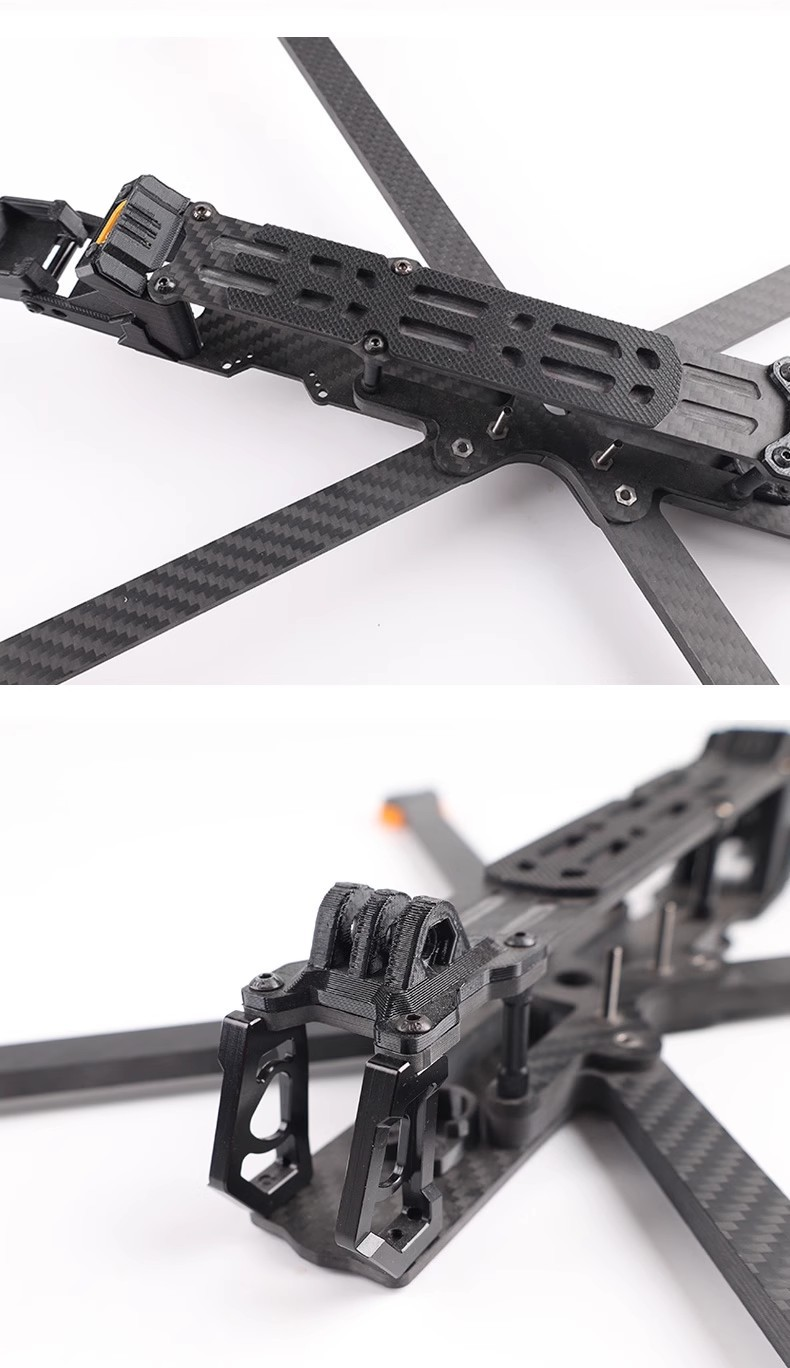

It is made of 3K carbon fiber material, boasting both light weight and high strength. Adopting an X-shaped design, it ensures stable flight performance. With high integration, it features fixed plugs and antenna mounts for enhanced durability. In addition, it has strong compatibility and is suitable for various image transmission systems such as HD O3 Air Unit and HD Vista.

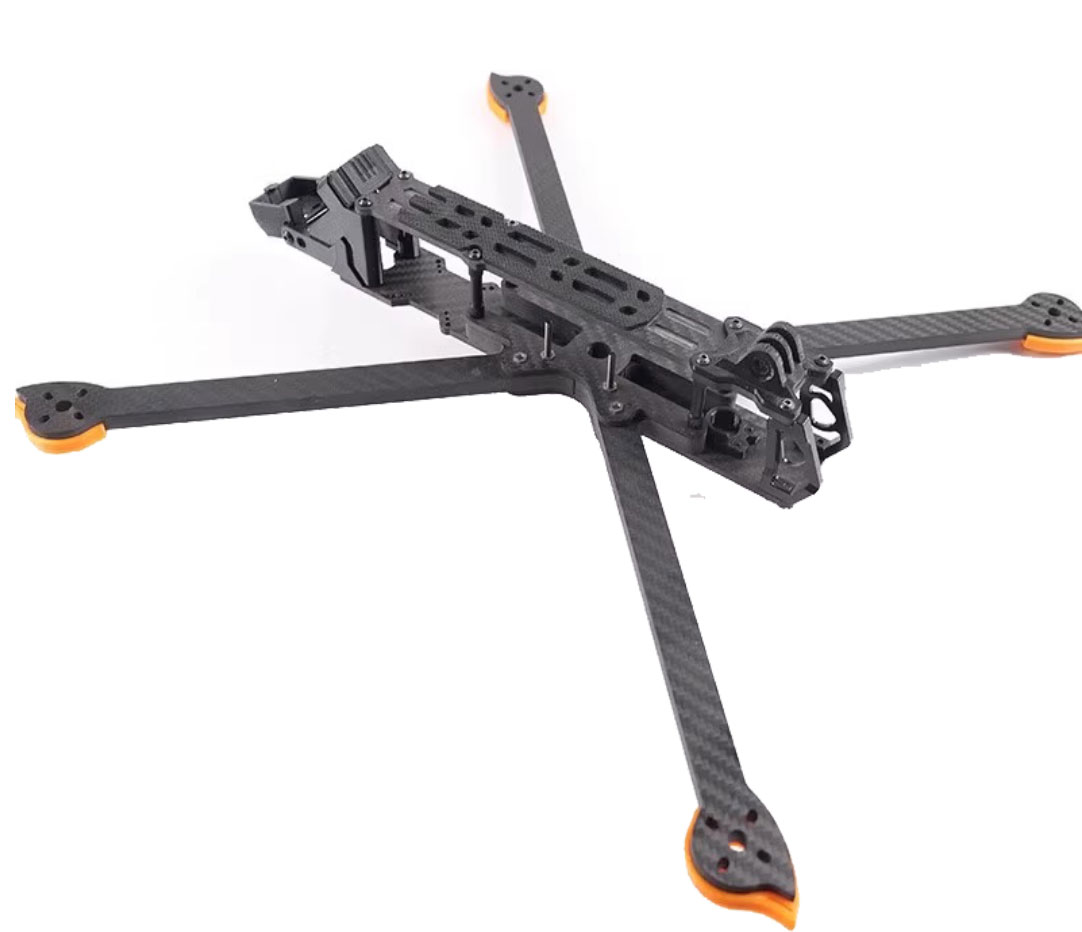

XL10 V6 10Inch Carbon Fiber Voyage Rack
Product Specifications:
1.Product Name:XL10V6Rack
2.The Rack Structure: X Pattern
3.Rack Wheelbase:420mm
4.Size of Rack:297*297*35mm
5.Weight(Excluding the Printing Part):270
7.Inner Space Height:20mm
8.Arm Thickness:7mm
9.Thickness of Middle Plate:3mm
10.Bottom Plate Thickness:3mm
11.Top Plate Thickness:3mm
12.Motor Mounting Hole Distance16*16mm/19*19mm
13.Flight Control Mounting Hole:30.5*30.5(3mm)
14.Image Transmission Installation Hole Distance:20*20(2mm)/25.5*25.5(2mm)/30.5*30.5(3mm)
15.Camera Side Plate Spacing:20*20mm
Product Features
1.Compatible with DJI DJI03Sky End(HD)/ VistaSky End(HD)
2.AdoptCNC,The material is lightweight with high strength,Sturdy and durable.
3.correctXStructural Design,Flight is flexible and stable.
4.Upgrade the robotic arm to7mmThickness,Higher strength, more stable flight,More durable.
5.Compatible with professional motors,High efficiency, large load capacity,Loadable1.5-2.5KG.
6.Can be equipped withGoPro5/6/7/8/9/10/11,DJI Action,SonySONY ZV E10Camera
Dimension Parameters

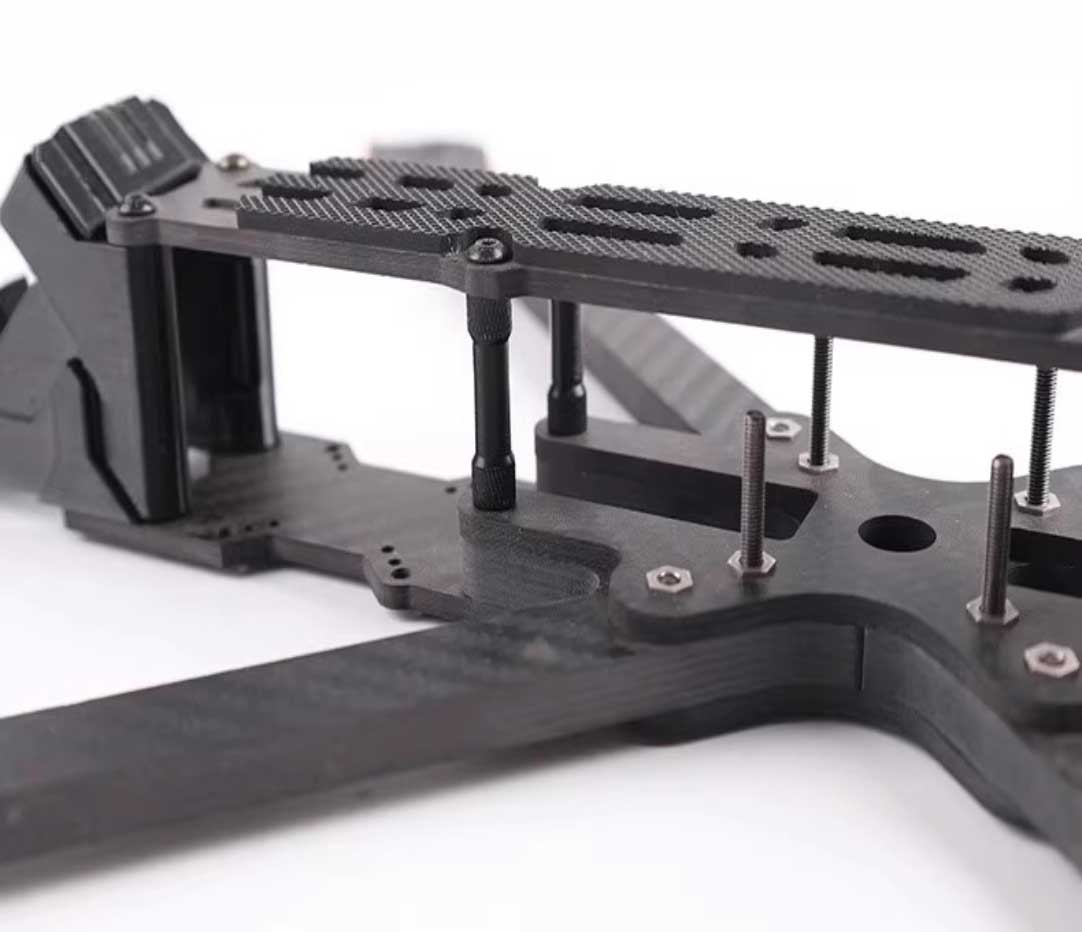

The motor diagonal distance is 420mm, and the frame dimensions are 297mm × 297mm × 35mm. The arm thickness is 7mm, while the thickness of the bottom plate, top plate and middle plate is all 3mm.
Mounting Hole Spacing
The mounting hole spacing for the flight controller stack is 30.5mm × 30.5mm. The image transmission system supports three hole spacing options: 20mm × 20mm, 25.5mm × 25.5mm and 30.5mm × 30.5mm. The motor mounting hole spacing is available in 16mm × 16mm and 19mm × 19mm.
Frame Weight
Approximately 343g.
Package List

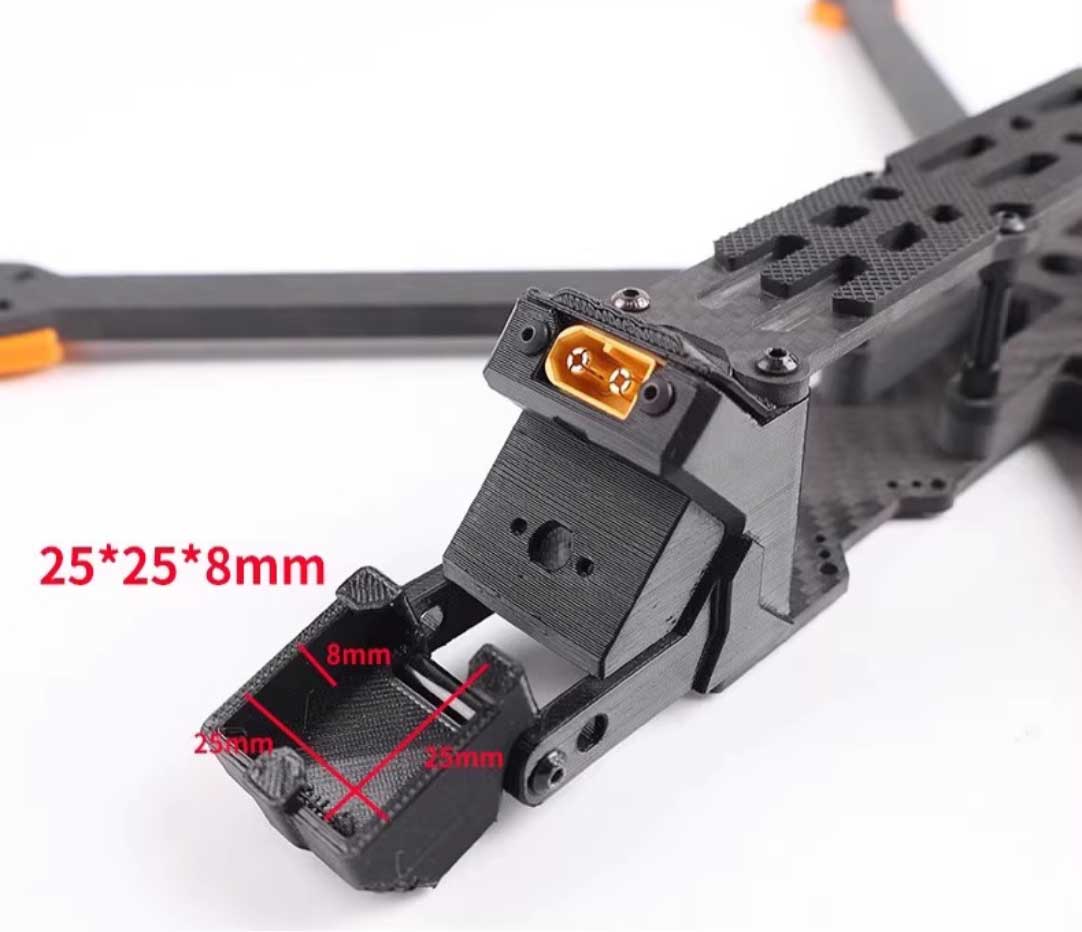

It includes 1 XL10 V6 frame, 1 set of TPU printed parts, 1 screw kit, 1 power cable with plug, 4 motor wire sleeves, 1 battery anti-slip pad and 2 battery straps.
