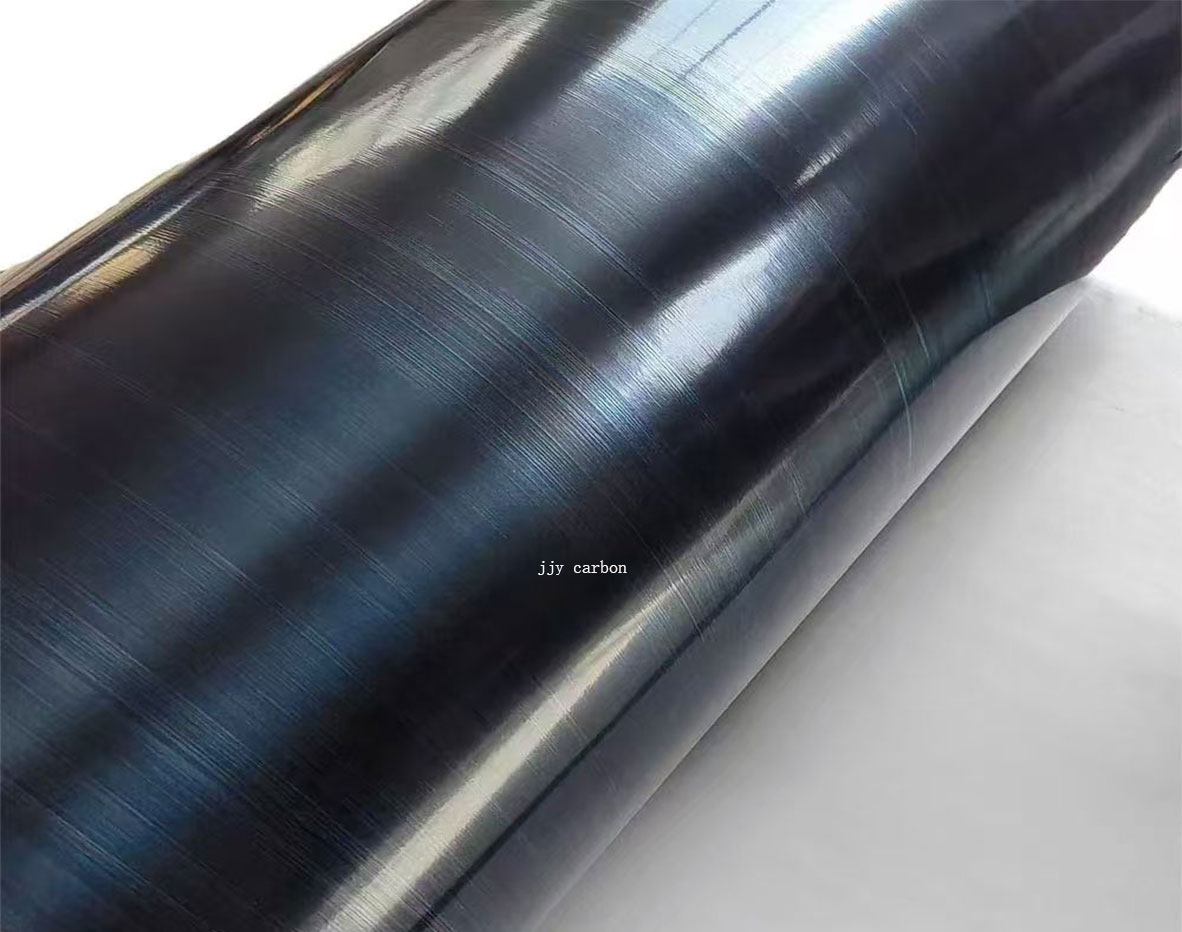

What is T800 Unidirectional Carbon Fiber Prepreg?

T800 Unidirectional Carbon Fiber Prepreg is a composite material composed of carbon fibers pre-impregnated with a resin matrix, providing superior mechanical properties. The unidirectional alignment of the fibers ensures optimal strength in the primary direction of stress, making it the ideal solution for applications where high strength, low weight, and precision are essential.

T800 is a top-tier choice for industries where performance and reliability cannot be compromised, delivering exceptional results in demanding environments.

1. Material Composition

Reinforcement Fiber

• Jinjiuyi T800 Carbon Fiber (standard 24K tow)

• Tensile Strength: ~5500 MPa (up to ~5880 MPa)

• Tensile Modulus: ~294 GPa

• Elongation at Break: ~1.9%

Resin Matrix

• Thermosetting Epoxy Resin

• Types: Medium-temperature curing (e.g., MTM49-3) or high-temperature      systems

• Typical Resin Content: 30%–40%

Form

• Unidirectional continuous fibers (UD – Unidirectional)

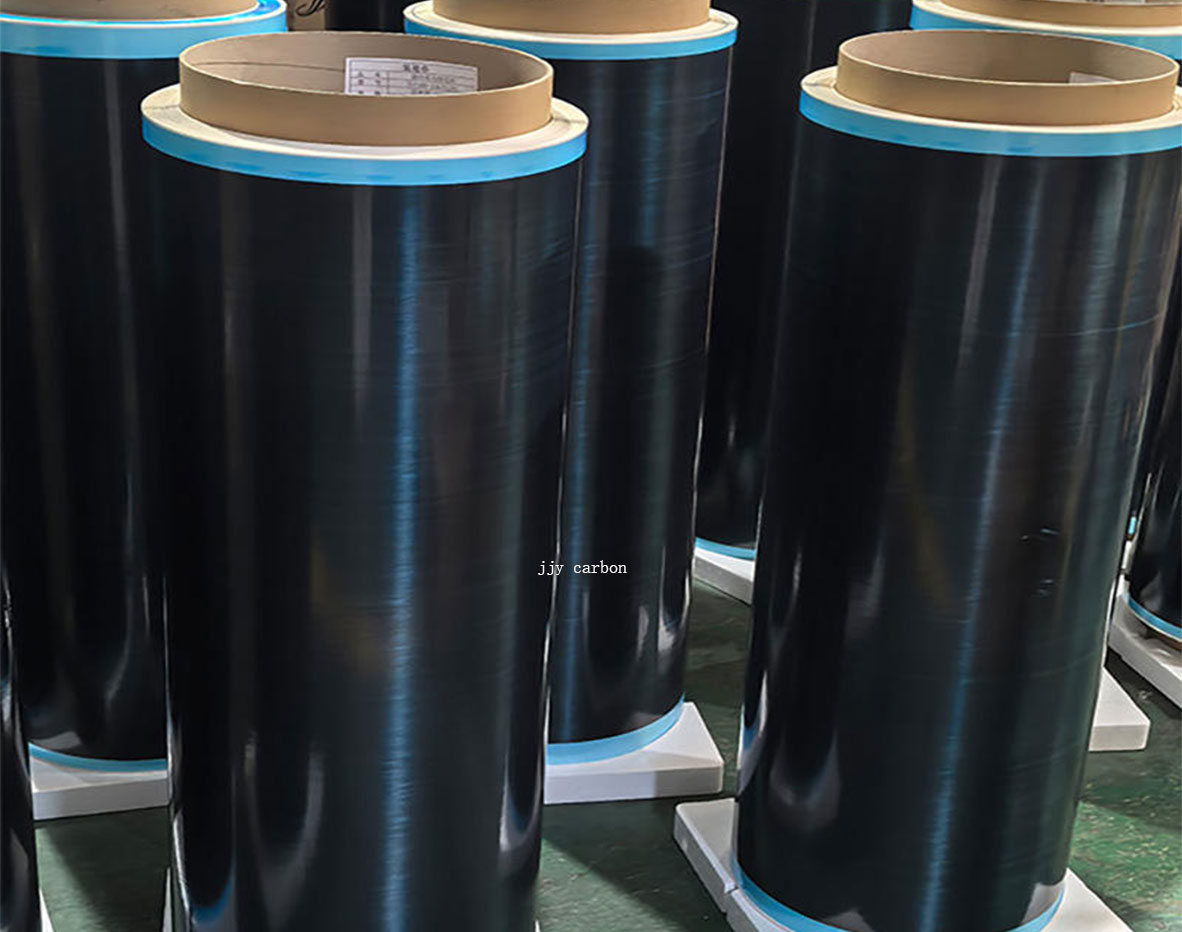

• Supplied in rolls or sheets

Key Benefits of T800 Unidirectional Carbon Fiber Prepreg

• Superior Strength-to-Weight Ratio: T800 offers an extraordinary combination of lightweight and high strength, making it the ideal choice for applications where weight reduction without sacrificing strength is crucial.

• Enhanced Stiffness: With the unidirectional fiber structure, T800 provides exceptional stiffness, which translates to increased load-bearing capacity and resistance to deformation.

• High-Performance Durability: The advanced resin system used in T800 ensures high impact resistance, fatigue strength, and long-lasting performance, even under extreme conditions.

• Versatility: Available in various thicknesses and widths, T800 carbon fiber prepreg is highly customizable to suit a wide range of applications.

• Thermal and Chemical Resistance: T800 prepreg maintains its mechanical properties across a broad range of temperatures and is resistant to chemicals, making it suitable for demanding environments.

• Consistent Quality: Each batch of T800 prepreg undergoes rigorous quality control to ensure uniformity, reliability, and peak performance.




Key Features

Highly Anisotropic Strength

• Fiber Direction (0°): Extremely high strength; primary load-bearing      direction

• Transverse Direction (90°): Lower strength; mainly supported by resin

• Interlaminar Strength: Dependent on resin toughness; can be enhanced via      toughening technologies

Lightweight Advantage

• Density: ~1.6 g/cm³ (≈ 1/5 of steel)

• Significantly higher strength-to-weight ratio than steel

Excellent Processability

• Pre-impregnated (“ready-to-use”) for efficient layup design

• Requires low-temperature storage (−18°C) with shelf life of several months

• Typically cured using an autoclave process

3. Typical Mechanical Properties (Cured Laminate)

Typical Applications

Aerospace

• Aircraft wings

• Fuselage panels

• Rocket motor casings

• Satellite structural components (primary load-bearing structures)

High-End Automotive

• Formula 1 race cars

• Supercar body panels

• Chassis reinforcement components

• EV battery enclosures

Industrial & UAV

• UAV frames and structures

• Robotic arms

• High-pressure vessels

• High-performance sporting goods (fishing rods, bicycle frames)

Comparison with Woven Prepreg

• Unidirectional Prepreg (UD):
       Fibers aligned in a single direction, offering maximum strength      efficiency; ideal for directional load-bearing designs, requires      multi-angle layup

• Woven Prepreg:
       Fibers interlaced in warp and weft directions; balanced biaxial      properties, better handling, and improved surface appearance

Processing Guidelines

• Layup Design:
       Mechanical performance is tailored by stacking sequences (e.g., [0°, ±45°,      90°])

• Curing Conditions:
       Typically 120–180°C under 3–7 bar pressure for several hours

• Storage:
       Must be stored frozen (≤ −18°C); allow material to      reach room temperature before use
